Forklift BGN1 Drum Lifter Attachment

$979.00

Description

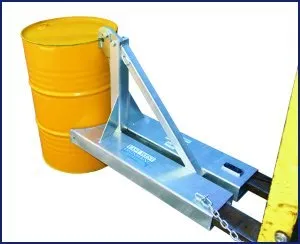

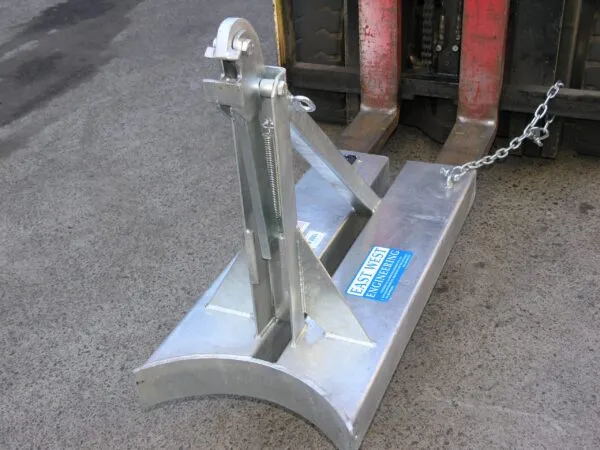

The BGN-1 Drum Lifter makes drum handling easy. A good field of vision allows the operator to continually observe the drum being handled. The operator does not leave the drivers seat. The unique Grab Beak design provides a high clamping force, even when travelling over uneven ground. With few moving parts this attachment requires no down time for repairs. These Lifters are suitable for standard 205 litre steel or plastic drums.

The type BGN-1 has been designed to lift a single drum. A contoured rest acts at a point low enough down the drum to prevent damage to the drum and its labelling.

The standard finish  is Zinc Plated.

Specifications:

Safe working Load: 1000kg

Fork Pocket Centres: 250mm

Fork Pocket Size: 185mm x 60 mm

Load Centre: 1210mm

Unit weight: 72kg



Additional information

Weight 100 kg
Dimensions 1.2 x .6 x .8 m
